FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

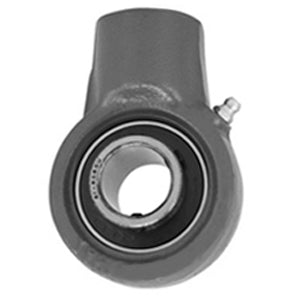

| title | MUCECH206-19TC |
| price | $ 180.20 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.94 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 808250222186 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 3.125 Inch | 79.375 Millimeter |
| Housing Overall Length | 4.125 Inch | 104.775 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Stainless Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | MUC206-19 |
| Rating | Normal Duty |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
