IPTCI

IPTCI CUCNPHA 209 45MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $140.04 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications

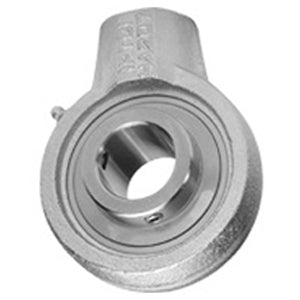

    title CUCNPHA 209 45MM
    price $ 164.75 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 3.9
    Bore 1.772 Inch | 45 Millimeter
    Other Features Single Row | Spherical | Corrosion Resistance | Wide Inner Race
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 1.937 Inch | 49.2 Millimeter
    Base to Center Height 3.228 Inch | 82 Millimeter
    Housing Outside Diameter 4.252 Inch | 108 Millimeter
    Housing Overall Length 5.354 Inch | 136 Millimeter
    Mounting Thread 1 Straight Pipe Female
    Insert Material Chrome Coated Steel
    Housing Style Hanger Unit
    Insert Part Number CUC209
    Rating Normal Duty
    Housing Material Nickel Coated Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
