    Specifications

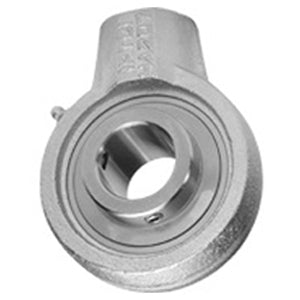

    title CUCNPHA 209 28
    price $ 158.08 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 3.9
    Bore 1.75 Inch | 44.45 Millimeter
    Other Features Single Row | Spherical | Corrosion Resistance | Wide Inner Race
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 1.937 Inch | 49.2 Millimeter
    Base to Center Height 3.25 Inch | 82.55 Millimeter
    Housing Outside Diameter 4.25 Inch | 107.95 Millimeter
    Housing Overall Length 5.344 Inch | 135.738 Millimeter
    Mounting Thread 1 Straight Pipe Female
    Insert Material Chrome Coated Steel
    Housing Style Hanger Unit
    Insert Part Number CUC209-28
    Rating Normal Duty
    Housing Material Nickel Coated Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
