FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

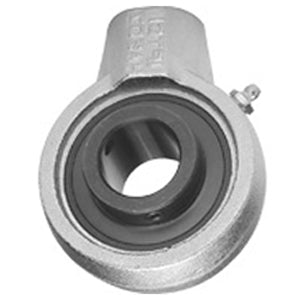

| title | BUCNPHA 215 48 |
| price | $ 543.02 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 12.2 |
| Bore | 3 Inch | 76.2 Millimeter |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Base to Center Height | 4.625 Inch | 117.475 Millimeter |
| Housing Outside Diameter | 6.531 Inch | 165.887 Millimeter |
| Housing Overall Length | 7.875 Inch | 200.025 Millimeter |
| Mounting Thread | 1-1/2 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | BUC215-48 |
| Rating | Normal Duty |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
