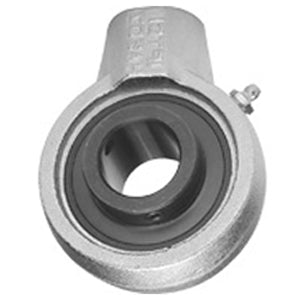

IPTCI BUCNPHA 215 47

  • Write a review
  • FREE SHIPPING on orders over $100
    • $461.57 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title BUCNPHA 215 47
    price $ 543.02 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 12.2
    Bore 2.938 Inch | 74.625 Millimeter
    Other Features Single Row | Spherical | Corrosion Resistance | Wide Inner Race
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 3.063 Inch | 77.8 Millimeter
    Base to Center Height 4.625 Inch | 117.475 Millimeter
    Housing Outside Diameter 6.531 Inch | 165.887 Millimeter
    Housing Overall Length 7.875 Inch | 200.025 Millimeter
    Mounting Thread 1-1/2 Straight Pipe Female
    Insert Material Black Oxide Coated Steel
    Housing Style Hanger Unit
    Insert Part Number BUC215-47
    Rating Normal Duty
    Housing Material Nickel Coated Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
