![BUCNPHA 204 20MM Hanger Unit Bearings](http://www.lilybearingonline.com/cdn/shop/products/INDICIBRGXXX-HNGR-BUCNPHA-SS-300x300_d746018d-73d4-49d8-aa66-ac947ea0cb91_{width}x.jpg?v=1572417441)
FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

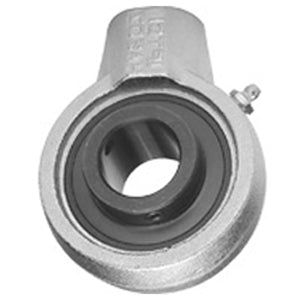

title | BUCNPHA 204 20MM |
price | $ 53.26 / each |
Category | Hanger Unit Bearings |
UNSPSC | 31171513 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | IPTCI |
Inch - Metric | Metric |
Brand | IPTCI |
Weight / LBS | 1.7 |
Bore | 0.787 Inch | 20 Millimeter |
Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race |
Relubricatable | Yes |
Mounting Method | Set Screw |
Length Thru Bore | 1.22 Inch | 31 Millimeter |
Base to Center Height | 2.52 Inch | 64 Millimeter |
Housing Outside Diameter | 2.52 Inch | 64 Millimeter |
Housing Overall Length | 3.78 Inch | 96 Millimeter |
Mounting Thread | 3/4 Straight Pipe Female |
Insert Material | Black Oxide Coated Steel |
Housing Style | Hanger Unit |
Insert Part Number | BUC204 |
Rating | Normal Duty |
Housing Material | Nickel Coated Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | B Seal |
