Specifications

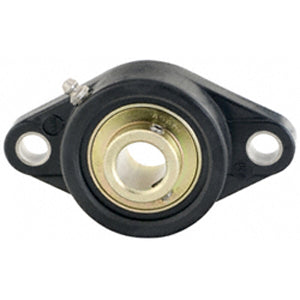

| title | UENFL209-28B |
| price | $ 168.38 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.09 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.4 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| EAN | 0808250332908 |
| Other Features | Single Row | Spherical | Normal Duty | Black Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 527194 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.976 Inch | 50.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.844 Inch | 148.438 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UE209-28 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
