Specifications

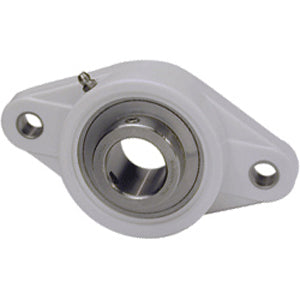

| title | SUCTFL 204 12 |
| price | $ 79.18 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Weight / kgm | 0.226 |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 0.5 |
| Bore | 0.75 Inch | 19.05 Millimeter |
| Other Features | Single Row | Spherical | Corrosion Resistant | Stainless Steel Insert | Has Slinger | Optional End Cap |
| Relubricatable | Yes |
| Global Part Number GPN | 557190 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.221 Inch | 31.013 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.531 Inch | 89.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 90 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | SUC204-12 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | No Pilot |
