FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

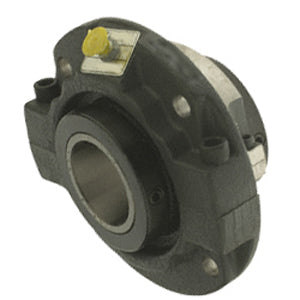

| title | RFP 315C |
| price | $ 2,178.03 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 25.061 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 55.2 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 0662288494164 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12984 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.25 Inch | 158.75 Millimeter |
| Cartridge Pilot Diameter | 8.125 Inch | 206.375 Millimeter |
| Cartridge Pilot Depth | 2.44 Inch | 61.976 Millimeter |
| Bolt Spacing | 6.6 Inch | 167.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.4 Inch | 238 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | RCI-315-C |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
