Specifications

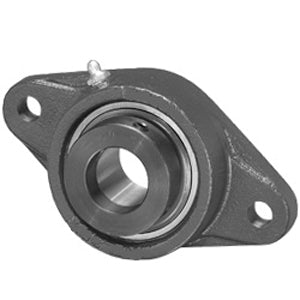

title | NANFL 207 21 |
price | $ 39.35 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | IPTCI |
Inch - Metric | Inch |
Brand | IPTCI |
Weight / LBS | 3.5 |
Bore | 1.313 Inch | 33.35 Millimeter |
Other Features | Single Row | Standard Duty | Wide Inner Race |
Relubricatable | Yes |
Global Part Number GPN | 548081 |
Mounting Method | Eccentric Collar |
Length Thru Bore | 2.012 Inch | 51.1 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 5.125 Inch | 130.18 Millimeter |
Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
Housing Style | 2 Bolt Flange Block |
Number of Mounting Holes | 2 |
Mounting Bolts | 7/16 Inch |
Insert Part Number | NA207-21 |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | B Seal |
Pilot Configuration | No Pilot |
