Specifications

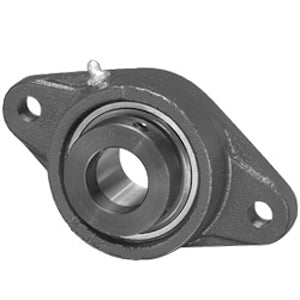

| title | NANFL 207 20 L3 |
| price | $ 47.83 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 3.5 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| Other Features | Single Row | Standard Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 548097 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.012 Inch | 51.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.125 Inch | 130.18 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | NA207-20 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | L3 Seal |
| Pilot Configuration | No Pilot |
