Specifications

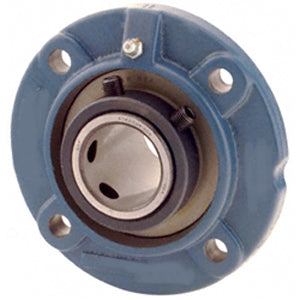

title | FYRP 1.15/16 H |
price | $ 384.65 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | SKF |
Weight / kgm | 3.72 |
Inch - Metric | Inch |
Brand | SKF |
Weight / LBS | 8.2 |
Bore | 1.938 Inch | 49.225 Millimeter |
EAN | 7316576664588 |
Other Features | Double Row | Heavy Duty | Open End | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 554689 |
Mounting Method | Concentric Collar |
Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
Cartridge Pilot Diameter | 4.5 Inch | 114.3 Millimeter |
Cartridge Pilot Depth | 0.875 Inch | 22.225 Millimeter |
Bolt Spacing | 3.8 Inch | 95.5 Millimeter |
Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
Housing Style | 4 Bolt Round Flange Cartridge |
Number of Mounting Holes | 4 |
Mounting Bolts | 7/16 Inch |
Insert Part Number | 22210 |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | Trigard |
Pilot Configuration | With Pilot |
