Specifications

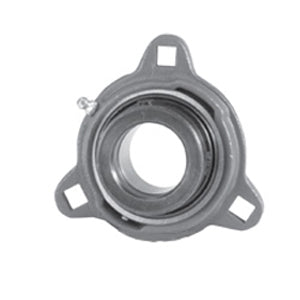

| title | FW222E |
| price | $ 103.78 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.8 |
| Bore | 1.375 Inch | 34.925 Millimeter |
| EAN | 662327032777 |
| Other Features | Single Row | Spherical | Intermediate Duty | Extended Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 244509 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.531 Inch | 38.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.4 Inch | 86.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | W222EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | High Test Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
