LINK BELT

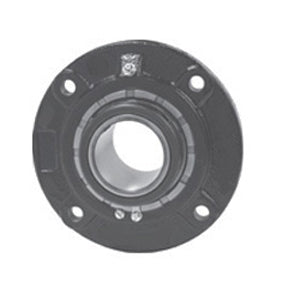

LINK BELT FCB22448E

  • Write a review
  • FREE SHIPPING on orders over $100
    • $762.42 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day

    Specifications


    title FCB22448E
    price $ 896.96 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.80
    Manufacturer Name REXNORD
    Weight / kgm 10.896
    Inch - Metric Inch
    Brand LINK BELT
    Weight / LBS 24
    Bore 3 Inch | 76.2 Millimeter
    EAN 0662327027681
    Other Features Double Row | Single Collar | Extended Inner Race | With Set Screw
    Relubricatable Yes
    Global Part Number GPN 246587
    Mounting Method Concentric Collar
    Length Thru Bore 4 Inch | 101.6 Millimeter
    Cartridge Pilot Diameter 6.375 Inch | 161.92 Millimeter
    Cartridge Pilot Depth 1.25 Inch | 31.75 Millimeter
    Bolt Spacing 5.297 Inch | 134.544 Millimeter
    Nominal Bolt Circle Diameter Round 7.5 Inch | 190 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 5/8 Inch
    Insert Part Number B22448EL
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Spring Loaded Lip
    Pilot Configuration With Pilot
