Specifications
| title | FB250STW X 1-1/4S |
| price | $ 216.82 / each |

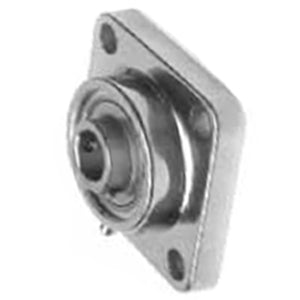

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 2.4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 662798257013 |
| Other Features | Single Row | Spherical | Wide Inner Race | Has Flinger | Anti Rotation Pin | Smaller Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 548175 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.25 Inch | 82.55 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 120 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | B250TW |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stainless Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Silicone |
| Pilot Configuration | No Pilot |
