Specifications

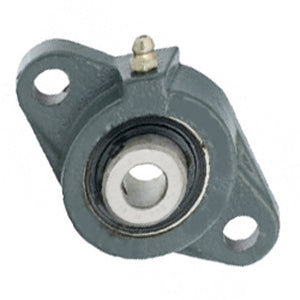

| title | F2B-VSC-107-NL MOD |
| price | $ 64.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.261 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 3.2 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| Other Features | Single Row | Intermediate Duty | Narrow Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 549397 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.438 Inch | 36.525 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.125 Inch | 130.18 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | INS-VSC-107 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
