Specifications

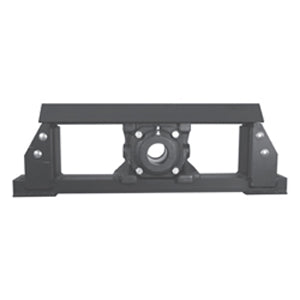

| title | DSLB685530 |
| price | $ 4,907.65 / each |
| Category | Take Up Unit Bearings |
| UNSPSC | 31171533 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 239 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 662327023478 |
| Other Features | Double Row | Hinged Top | Welded Steel Frame | Non-expansion | Independently Flushable Seal |
| Global Part Number GPN | 675005 |
| Mounting Method | Adapter Sleeve |
| Slot to Slot Distance | 0 Inch | 0 Millimeter |
| Slot Width | 0 Inch | 0 Millimeter |
| Housing Style | Top Angle |
| Compatible Take Up Frame | DS |
| Insert Part Number | 22220LBKC3 |
| Adjustment Travel Length | 30 |
| Housing Material | Cast Iron |
