FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

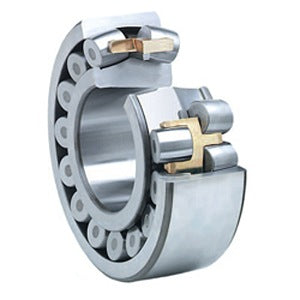

| title | 22330-E1A-K-M-C3 |
| price | $ 2,550.19 / each |
| Category | Spherical Roller Bearings |
| UNSPSC | 31171510 |
| Harmonized Tariff Code | 84823080 |
| Manufacturer Name | SCHAEFFLER GROUP USA INC |
| Inch - Metric | Metric |
| Brand | FAG BEARING |
| Weight / LBS | 87.963 |
| Bore | 5.906 Inch | 150 Millimeter |
| EAN | 4026677865182 |
| Outside Diameter | 12.598 Inch | 320 Millimeter |
| Relubricatable | Yes |
| Seal Type | Open |
| Enclosure | Open |
| Global Part Number GPN | 477259 |
| Mounting Method | Adapter Mount |
| Cage Material | Bronze |
| Width | 4.252 Inch | 108 Millimeter |
| Internal Clearance | C3-Loose |
| Number of Rows of Rollers | Double Row |
| Withdrawal Sleeve | AHX2330 (Specify bore) |
| Withdrawal Nut | KM32 |
| Adapter Part Number | SNW130 H2330 HE2330 (Specify Bore) Inch | H2330 (Specify bore) Millimeter |
| Bore Profile | Tapered |
