Specifications

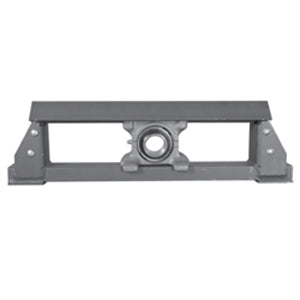

| title | TDS3U231N24 |
| price | $ 1,108.36 / each |
| Category | Take Up Unit Bearings |
| UNSPSC | 31171533 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 52.5 |
| Bore | 1.938 Inch | 49.225 Millimeter |
| EAN | 662327142926 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Hinged Top | Welded Steel Frame | One Lip Seal |
| Global Part Number GPN | 674972 |
| Mounting Method | Set Screw |
| Slot to Slot Distance | 0 Inch | 0 Millimeter |
| Slot Width | 0 Inch | 0 Millimeter |
| Housing Style | Top Angle |
| Compatible Take Up Frame | TDS |
| Insert Part Number | UG231NL |
| Adjustment Travel Length | 24 |
| Housing Material | Cast Iron |
