FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

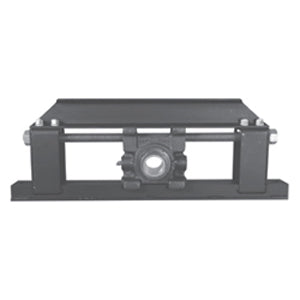

| title | DSHB22547H24 |
| price | $ 3,438.76 / each |
| Category | Take Up Unit Bearings |
| UNSPSC | 31171533 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 67.19 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 148 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0662327022808 |
| Other Features | Double Row | Double Collar | Extended Inner Race | Welded Steel Frame | Floating Labyrinth | With Set Screw |
| Global Part Number GPN | 674887 |
| Mounting Method | Concentric Collar |
| Slot to Slot Distance | 0 Inch | 0 Millimeter |
| Slot Width | 0 Inch | 0 Millimeter |
| Housing Style | Top Angle |
| Compatible Take Up Frame | DSH |
| Insert Part Number | B22547HL |
| Adjustment Travel Length | 24 |
| Housing Material | Cast Iron |
