FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

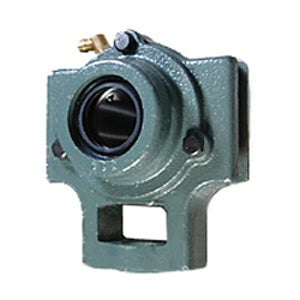

| title | CM-UCT205D1 |
| price | $ 97.62 / each |
| Category | Take Up Unit Bearings |
| UNSPSC | 31171533 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 2.425 |
| Bore | 0.984 Inch | 25 Millimeter |
| EAN | 4547359051926 |
| Other Features | Single Row | Spherical | Light Duty | Wide Inner Race | Used with Angle Steel Frame | Closed End | Cast Iron Cover | Has |
| Global Part Number GPN | 675935 |
| Mounting Method | Set Screw |
| Slot to Slot Distance | 2.992 Inch | 76 Millimeter |
| Slot Width | 0.472 Inch | 12 Millimeter |
| Housing Style | Unit Only |
| Compatible Take Up Frame | Not Specified |
| Insert Part Number | UC205D1 |
| Housing Material | Cast Iron |
