Specifications
| title | 22320-E1-K-C3 |
| price | $ 849.05 / each |

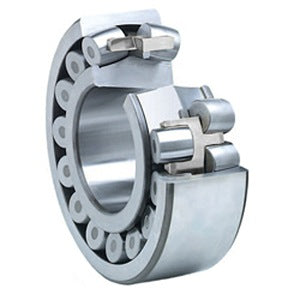

| Category | Spherical Roller Bearings |
| UNSPSC | 31171510 |
| Harmonized Tariff Code | 84823080 |
| Manufacturer Name | SCHAEFFLER GROUP |
| Weight / kgm | 11.71 |
| Inch - Metric | Metric |
| Brand | FAG BEARING |
| Weight / LBS | 25.816 |
| Bore | 3.937 Inch | 100 Millimeter |
| EAN | 4026677810830 |
| Outside Diameter | 8.465 Inch | 215 Millimeter |
| Relubricatable | Yes |
| Seal Type | Open |
| Enclosure | Open |
| Global Part Number GPN | 477171 |
| Mounting Method | Adapter Mount |
| Cage Material | Steel |
| Width | 2.874 Inch | 73 Millimeter |
| Internal Clearance | C3-Loose |
| Number of Rows of Rollers | Double Row |
| Withdrawal Sleeve | AHX2320 (Specify bore) |
| Withdrawal Nut | KM22 |
| Adapter Part Number | SNW120 H2320 HA2320 HE2320 (Specify Bore) Inch | H2320 (Specify bore) Millimeter |
| Bore Profile | Tapered |
