Specifications
| title | KML20Z |
| price | $ 97.72 / each |

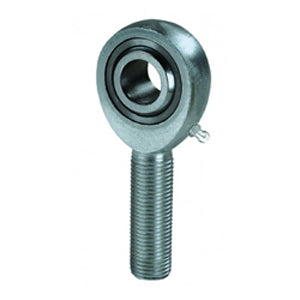

| Category | Spherical Plain Bearings - Rod Ends |
| UNSPSC | 31171508 |
| Harmonized Tariff Code | 8483.30.80.55 |
| Manufacturer Name | QA1 PRECISION PRODUCTS |
| Inch - Metric | Inch |
| Brand | QA1 PRECISION PROD |
| Weight / LBS | 2.41 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 0806990018984 |
| Other Features | 3 Piece | Precision | MOS Coated Ball and Race | With Grease Fitting |
| Relubricatable | Yes |
| Seal Type | 2 Seals |
| Enclosure | 2 Seals |
| Ball Width | 1.093 Inch | 27.762 Millimeter |
| Housing Width | 0.937 Inch | 23.8 Millimeter |
| Stud Profile | Male |
| Mounting Thread | 1-1/4-12 UNF |
| Material - Ball | Steel |
| Material - Outer Member | Steel |
| Material - Liner | Steel |
| Thread Direction | Left Hand |
