Specifications

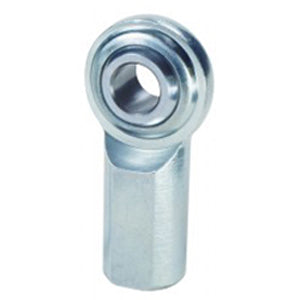

| title | CFR5S |
| price | $ 6.81 / each |
| Category | Spherical Plain Bearings - Rod Ends |
| UNSPSC | 31171508 |
| Harmonized Tariff Code | 8483.30.80.55 |
| Manufacturer Name | QA1 PRECISION PRODUCTS INC. |
| Weight / kgm | 0.04 |
| Inch - Metric | Inch |
| Brand | QA1 PRECISION PROD |
| Weight / LBS | 0.08 |
| Bore | 0.313 Inch | 7.95 Millimeter |
| EAN | 0806990041906 |
| Other Features | 2 Piece | Chrome Plated Ball | With Stud |
| Relubricatable | No |
| Seal Type | Open |
| Enclosure | Open |
| Ball Width | 0.437 Inch | 11 1/10 Millimeter |
| Housing Width | 0.312 Inch | 7.925 Millimeter |
| Stud Profile | Female |
| Mounting Thread | 5/16-24 UNF |
| Material - Ball | Steel |
| Material - Outer Member | Steel |
| Material - Liner | Not Applicable |
| Thread Direction | Right Hand |
