Specifications

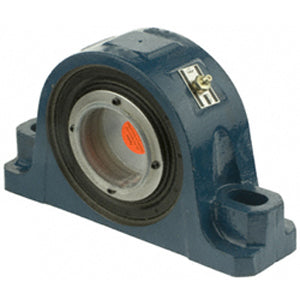

| title | SYR 2.1/2 NH |
| price | $ 453.25 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 16 |
| Other Features | Double Row | Heavy Duty | Locating Bearing | Open End | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 500906 |
| Mounting Method | Stepped Sleeve |
| Length Thru Bore | 2.578 Inch | 65.481 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.1 Inch | 181 Millimeter |
| Bolt Spacing Minimum | 6.813 Inch | 173.05Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 7.438 Inch | 188.925Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22213 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Trigard |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
