FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

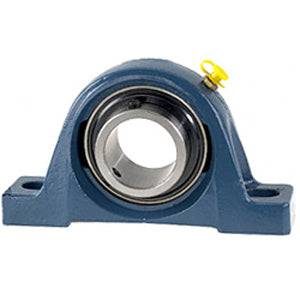

title | SY 45 TF |
price | $ 217.58 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | SKF |
Weight / kgm | 2.2 |
Inch - Metric | Metric |
Brand | SKF |
Weight / LBS | 4.85 |
Other Features | Single Row | Standard Duty | Wide Inner Race | Y Bearing | Has Flinger |
Relubricatable | Yes |
Global Part Number GPN | 501223 |
Mounting Method | Set Screw |
Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
Actual Bolt Center to Center | 5.6 Inch | 143Millimeter |
Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
Bolt Spacing Minimum | 0 Inch | 0Millimeter |
Base to Center Height | 2.126 Inch | 54 Millimeter |
Bolt Spacing Maximum | 0 Inch | 0Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | YAR 209-2F |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | M Seal |
Housing Material | Cast Iron |
Mounting Bolts | 12 Millimeter |
Housing Configuration | 1 Piece Solid |
