Specifications

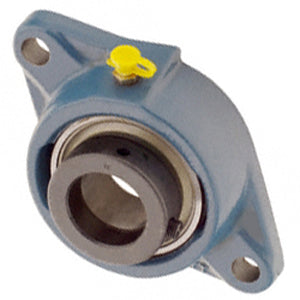

| title | FYT 3/4 TF/AH |
| price | $ 64.71 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 1.1 |
| Bore | 0.75 Inch | 19.05 Millimeter |
| EAN | 7316571841151 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Open End | Anti Rotation Pin | Air Handling Quality Grease | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 555057 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.221 Inch | 31.013 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.532 Inch | 89.713 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 90 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | YAR 204-012-2F/AH |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Pilot Configuration | No Pilot |
