Specifications

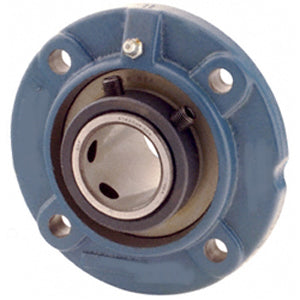

| title | FYRP 3.15/16 NH |
| price | $ 1,701.73 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 40 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 7316571519173 |
| Other Features | Double Row | Heavy Duty | Concentra Unit | Open End | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 554781 |
| Mounting Method | Stepped Sleeve |
| Length Thru Bore | 4.594 Inch | 116.688 Millimeter |
| Cartridge Pilot Diameter | 8.125 Inch | 206.375 Millimeter |
| Cartridge Pilot Depth | 2 Inch | 50.8 Millimeter |
| Bolt Spacing | 6.6 Inch | 167.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.4 Inch | 238 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 22220 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Trigard |
| Pilot Configuration | With Pilot |
