Specifications

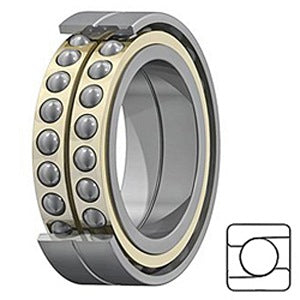

| title | HTA048AL1BDB/GNP4L |
| price | $ 14,722.22 / each |
| Category | Precision Ball Bearings |
| UNSPSC | 31171531 |
| Harmonized Tariff Code | 8482.10.50.28 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Bore | 9.449 Inch | 240 Millimeter |
| Outside Diameter | 14.173 Inch | 360 Millimeter |
| Seal Type | Open |
| Enclosure | Open |
| Precision Class | ABEC 7 | ISO P4 |
| Cage Material | Brass |
| Width | 4.252 Inch | 108 Millimeter |
| Single Row/Double Row | Single Row |
| Preload | Light |
| Material - Ball | Steel |
| Contact Angle | 30 Degree |
| Raceway Style | 1 Rib Inner Ring and Outer Ring |
| Flush Ground | Yes |
| Mounting Arrangement | Duplex-Back to Back |
