NTN

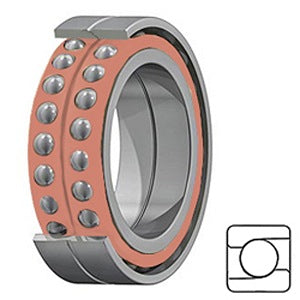

NTN HTA022DB/GNP4L

  • Write a review
  • FREE SHIPPING on orders over $100
    • $3,185.01 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title HTA022DB/GNP4L
    price $ 3,747.07 / each
    Category Precision Ball Bearings
    UNSPSC 31171531
    Harmonized Tariff Code 8482.10.50.28
    Manufacturer Name NTN
    Weight / kgm 4.136
    Inch - Metric Metric
    Brand NTN
    Bore 4.331 Inch | 110 Millimeter
    Outside Diameter 6.693 Inch | 170 Millimeter
    Seal Type Open
    Enclosure Open
    Precision Class ABEC 7 | ISO P4
    Cage Material Phenolic
    Width 2.126 Inch | 54 Millimeter
    Single Row/Double Row Single Row
    Preload Light
    Material - Ball Steel
    Contact Angle 40 Degree
    Raceway Style 1 Rib Inner Ring and Outer Ring
    Flush Ground Yes
    Mounting Arrangement Duplex-Back to Back
