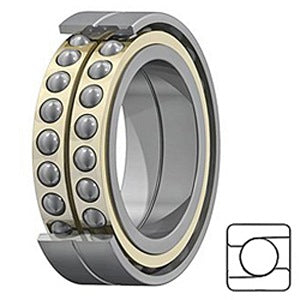

NTN HSB015CDB/G1P4

  • Write a review
  • FREE SHIPPING on orders over $100
    • $3,032.79 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title HSB015CDB/G1P4
    price $ 3,567.99 / each
    Category Precision Ball Bearings
    UNSPSC 31171531
    Harmonized Tariff Code 8482.10.50.28
    Manufacturer Name NTN
    Inch - Metric Metric
    Brand NTN
    Bore 2.953 Inch | 75 Millimeter
    Outside Diameter 4.528 Inch | 115 Millimeter
    Seal Type Open
    Enclosure Open
    Precision Class ABEC 7 | ISO P4
    Cage Material Brass
    Width 1.575 Inch | 40 Millimeter
    Single Row/Double Row Single Row
    Preload Special
    Material - Ball Steel
    Contact Angle 15 Degree
    Raceway Style 1 Rib Inner Ring and Outer Ring
    Flush Ground Yes
    Mounting Arrangement Duplex-Back to Back
