NTN

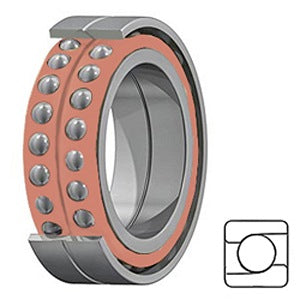

NTN 7206T2DB/GMP5

  • Write a review
  • FREE SHIPPING on orders over $100
    • $482.09 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title 7206T2DB/GMP5
    price $ 567.17 / each
    Category Precision Ball Bearings
    UNSPSC 31171531
    Harmonized Tariff Code 8482.10.50.28
    Manufacturer Name NTN
    Inch - Metric Metric
    Brand NTN
    Bore 1.181 Inch | 30 Millimeter
    Outside Diameter 2.441 Inch | 62 Millimeter
    Seal Type Open
    Enclosure Open
    Precision Class ABEC 5 | ISO P5
    Cage Material Polyamide
    Width 1.26 Inch | 32 Millimeter
    Single Row/Double Row Single Row
    Preload Medium
    Material - Ball Steel
    Contact Angle 30 Degree
    Raceway Style 1 Rib Inner Ring and Outer Ring
    Flush Ground Yes
    Mounting Arrangement Duplex-Back to Back
