Specifications

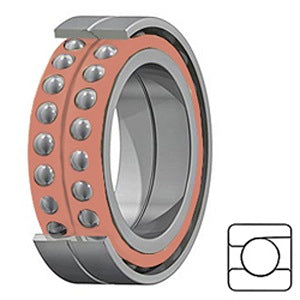

| title | 7016T1DB+14D2CS#01 |
| price | $ 1,453.68 / each |
| Category | Precision Ball Bearings |
| UNSPSC | 31171531 |
| Harmonized Tariff Code | 8482.10.50.28 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Bore | 3.15 Inch | 80 Millimeter |
| Outside Diameter | 4.921 Inch | 125 Millimeter |
| Seal Type | Open |
| Enclosure | Open |
| Precision Class | ABEC 5 | ISO P5 |
| Cage Material | Phenolic |
| Width | 2.283 Inch | 58 Millimeter |
| Single Row/Double Row | Single Row |
| Preload | None |
| Material - Ball | Steel |
| Contact Angle | 30 Degree |
| Raceway Style | 1 Rib Outer Ring |
| Flush Ground | Yes |
| Mounting Arrangement | Duplex-Back to Back |
