FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

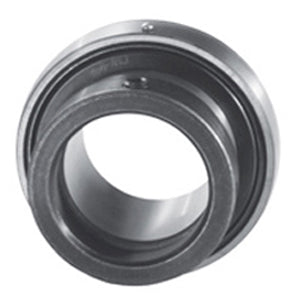

| title | YG226E3L |
| price | $ 159.45 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.1 |
| Bore | 1.625 Inch | 41.275 Millimeter |
| Other Features | Single Row | Normal Duty | With Set Screw |
| Outside Diameter | 3.347 Inch | 85.014 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 245282 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.219 Inch | 56.363 Millimeter |
| Outer Race Width | 0.866 Inch | 21.996 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Triple Lip |
