Specifications

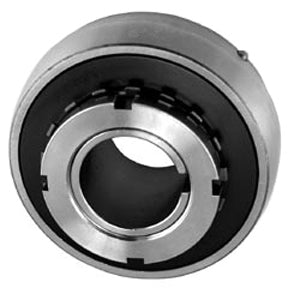

| title | UG3K47L |
| price | $ 2,037.43 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 23.5 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| Other Features | Single Row | Heavy Duty |
| Outside Diameter | 7.481 Inch | 190.017 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 562179 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 3.516 Inch | 89.306 Millimeter |
| Outer Race Width | 1.929 Inch | 48.997 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Steel Clad Clearance |
