Specifications

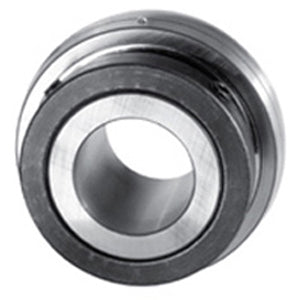

| title | UG356L |
| price | $ 1,922.12 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 23.5 |
| Bore | 3.5 Inch | 88.9 Millimeter |
| Other Features | Single Row | Heavy Duty | Single Collar | With Set Screw |
| Outside Diameter | 7.481 Inch | 190.017 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 562191 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.938 Inch | 125.425 Millimeter |
| Outer Race Width | 1.929 Inch | 48.997 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Steel Clad Clearance |
