Specifications

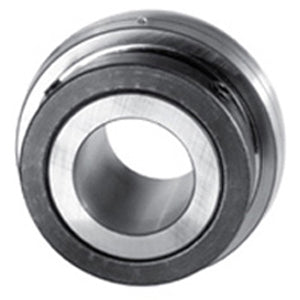

| title | UG335NL |
| price | $ 361.61 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 6.6 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| Other Features | Single Row | Heavy Duty | Single Collar | With Set Screw |
| Outside Diameter | 4.724 Inch | 119.99 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 245388 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Outer Race Width | 1.339 Inch | 34.011 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Double Lip Contact |
