Specifications

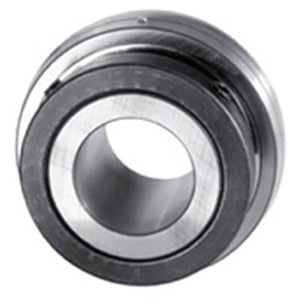

| title | UG323L |
| price | $ 138.26 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 0.953 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.1 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| Other Features | Single Row | Heavy Duty | Single Collar | With Set Screw |
| Outside Diameter | 3.15 Inch | 80.01 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 245235 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.094 Inch | 53.188 Millimeter |
| Outer Race Width | 1.024 Inch | 26.01 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Steel Clad Clearance |
