Specifications

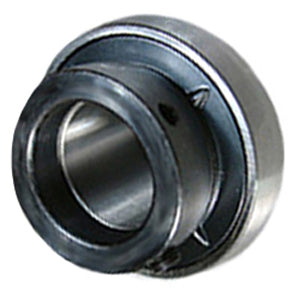

| title | UEL307-106D1 |
| price | $ 77.83 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.804 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.77 |
| Bore | 1.375 Inch | 34.925 Millimeter |
| Other Features | Single Row | Heavy Duty | With Set Screw | Steel Cage | Has Flinger |
| Outside Diameter | 3.15 Inch | 80.01 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 564807 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.031 Inch | 51.587 Millimeter |
| Outer Race Width | 0.984 Inch | 24.994 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Land Riding |
