Specifications

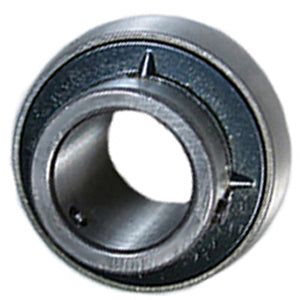

| title | UC316-303D1 |
| price | $ 720.42 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 12.1 |
| Bore | 3.188 Inch | 80.975 Millimeter |
| Other Features | Single Row | Heavy Duty | Steel Cage | Has Flinger |
| Outside Diameter | 6.693 Inch | 170.002 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 564727 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.386 Inch | 86.004 Millimeter |
| Outer Race Width | 1.772 Inch | 45.009 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Land Riding |
