Specifications

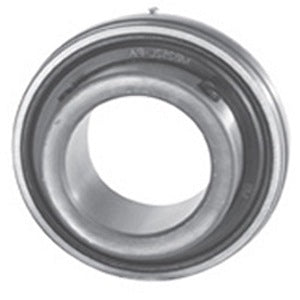

| title | SG2E36E1LPA |
| price | $ 174.38 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.87 |
| Bore | 2.25 Inch | 57.15 Millimeter |
| Other Features | Single Row | Normal Duty | Steel Retainer | Anti Rotation Pin |
| Outside Diameter | 3.937 Inch | 100 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 562969 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.813 Inch | 46.05 Millimeter |
| Outer Race Width | 0.984 Inch | 24.994 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Viton |
