Specifications
| title | SG247E1LPA |
| price | $ 277.70 / each |

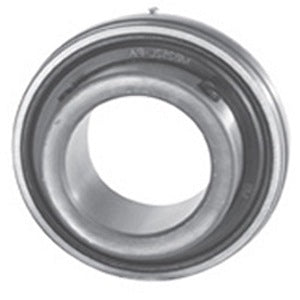

| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 1.8 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.96 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| Other Features | Single Row | Normal Duty | Anti Rotation Pin |
| Outside Diameter | 5.118 Inch | 129.997 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 562976 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.266 Inch | 57.556 Millimeter |
| Outer Race Width | 1.184 Inch | 30.074 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Viton |
