Specifications

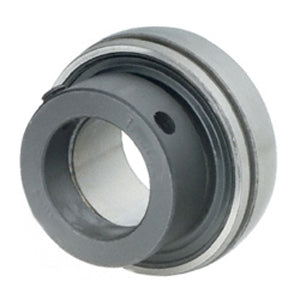

| title | INS-SXV-17M |
| price | $ 32.92 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.1 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 0.22 |
| Bore | 0.669 Inch | 17 Millimeter |
| Other Features | Single Row | Intermediate Duty | With Set Screw | Metric |
| Outside Diameter | 1.575 Inch | 40 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560904 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.126 Inch | 28.6 Millimeter |
| Outer Race Width | 0.512 Inch | 13 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
