FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

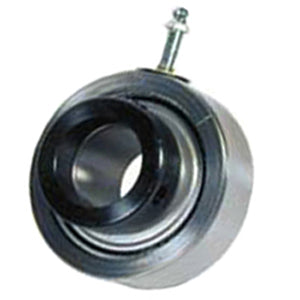

| title | INS-SXRH-107E |
| price | $ 144.39 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.82 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 1.81 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| Other Features | Single Row | Normal Duty | Expansion | With Set Screw |
| Outside Diameter | 3.272 Inch | 83.109 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560879 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.016 Inch | 51.206 Millimeter |
| Outer Race Width | 0.75 Inch | 19.05 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
