Specifications
| title | INS-SXR-30M |
| price | $ 62.34 / each |

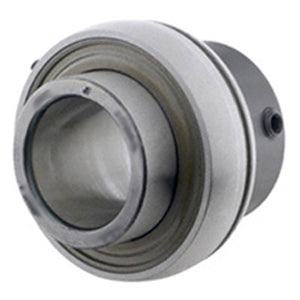

| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.4 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 0.882 |
| Bore | 1.181 Inch | 30 Millimeter |
| Other Features | Single Row | Normal Duty | With Set Screw | Metric |
| Outside Diameter | 2.441 Inch | 62 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560867 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.906 Inch | 48.4 Millimeter |
| Outer Race Width | 0.709 Inch | 18 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
