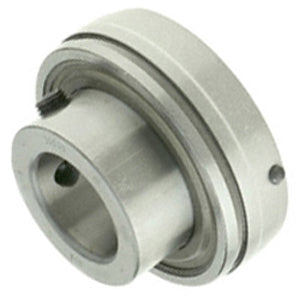

DODGE

DODGE INS-SCM-103

  • Write a review
  • FREE SHIPPING on orders over $100
    • $51.89 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title INS-SCM-103
    price $ 61.05 / each
    Category Insert Bearings Spherical OD
    UNSPSC 31171536
    Harmonized Tariff Code 8482.10.50.00
    Manufacturer Name ABB MOTORS AND MECHANICAL INC
    Weight / kgm 0.49
    Inch - Metric Inch
    Brand DODGE
    Weight / LBS 1.07
    Bore 1.188 Inch | 30.175 Millimeter
    Other Features Single Row | Medium Duty
    Outside Diameter 2.835 Inch | 72.009 Millimeter
    Relubricatable Yes
    Global Part Number GPN 560789
    Mounting Method Set Screw
    Length Thru Bore 1.531 Inch | 38.887 Millimeter
    Outer Race Width 0.748 Inch | 18.999 Millimeter
    Inner Race Profile Wide Inner Ring
    Snap Ring No
    Outer Race Profile Spherical
    Seal Type Single Lip Contact
