DODGE

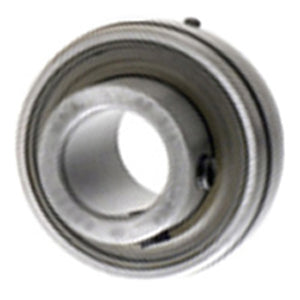

DODGE INS-SC-105-HT-DRT

  • Write a review
  • FREE SHIPPING on orders over $100
    • $171.05 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title INS-SC-105-HT-DRT
    price $ 201.23 / each
    Category Insert Bearings Spherical OD
    UNSPSC 31171536
    Harmonized Tariff Code 8482.10.50.00
    Manufacturer Name ABB MOTORS AND MECHANICAL INC
    Weight / kgm 0.44
    Inch - Metric Inch
    Brand DODGE
    Weight / LBS 0.97
    Bore 1.313 Inch | 33.35 Millimeter
    Other Features Single Row | Normal Duty | Hi-Temp Bearing From 225 to 400 Degree F
    Outside Diameter 2.835 Inch | 72.009 Millimeter
    Relubricatable Yes
    Global Part Number GPN 560710
    Mounting Method Set Screw
    Length Thru Bore 1.531 Inch | 38.887 Millimeter
    Outer Race Width 0.748 Inch | 18.999 Millimeter
    Inner Race Profile Wide Inner Ring
    Snap Ring No
    Outer Race Profile Spherical
    Seal Type Single Lip Contact
