Specifications
| title | INS-S2-300L |
| price | $ 561.60 / each |

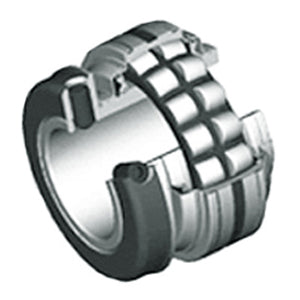

| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.30.00.80 |
| Manufacturer Name | DODGE |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 7.18 |
| Bore | 3 Inch | 76.2 Millimeter |
| Other Features | Double Row | With Set Screw | Has Flinger |
| Outside Diameter | 5.118 Inch | 129.997 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560938 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.594 Inch | 91.288 Millimeter |
| Outer Race Width | 1.281 Inch | 32.537 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Metallic Labyrinth |
