FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

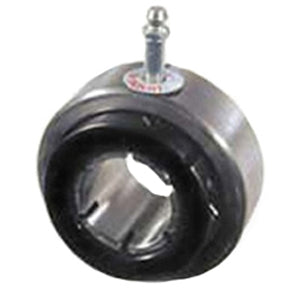

| title | INS-DLH-115-E |
| price | $ 311.80 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.612 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 4.5 |
| Bore | 1.938 Inch | 49.225 Millimeter |
| Other Features | Single Row | Normal Duty | With Set Screw | Expansion |
| Outside Diameter | 4 Inch | 101.6 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560630 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.094 Inch | 53.188 Millimeter |
| Outer Race Width | 0.866 Inch | 21.996 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
