Specifications

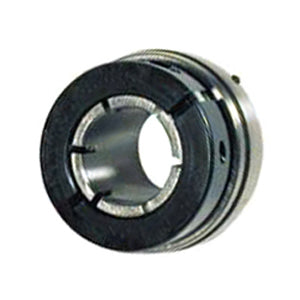

| title | INS-DL-40M |
| price | $ 130.59 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.998 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 2.205 |
| Bore | 1.575 Inch | 40 Millimeter |
| Other Features | Single Row | Normal Duty | With Set Screw | Corrosion Resistant | Metric |
| Outside Diameter | 3.15 Inch | 80 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560616 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2 Inch | 50.8 Millimeter |
| Outer Race Width | 0.866 Inch | 22 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
